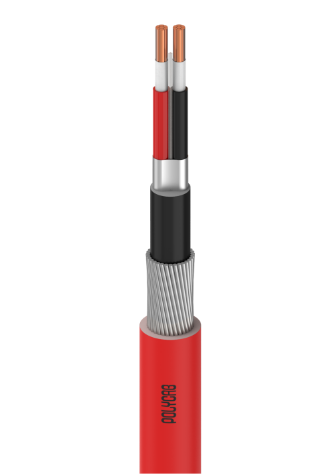

600/1000 Volts Grade, Circular Stranded Plain Annealed Bare
Copper Conductor, Two Layers of Mica Tapes Wrapped, XLPE
Insulation, Cores Laid Up Together, Extruded LSZH Inner
Sheathed, Galvanised Steel Round Wire Armoured, Extruded
LSZH Compound Outer Sheathed Fire Survival Armoured Cable.
| Conductor | Plain Annealed Bare Copper |
|---|---|
| Mica Tape | Two Layers of Glass Mica Tapes |
| Insulation | XLPE insulation |
| Bedding | Extruded LSZH Compound |
| Armouring | Galvanised Steel Round Wire |
| Outer Sheath | Extruded LSZH Compound |
| Nominal OD | 15.50 ± 2 mm |
| Voltage | 600/1000 Volts |
